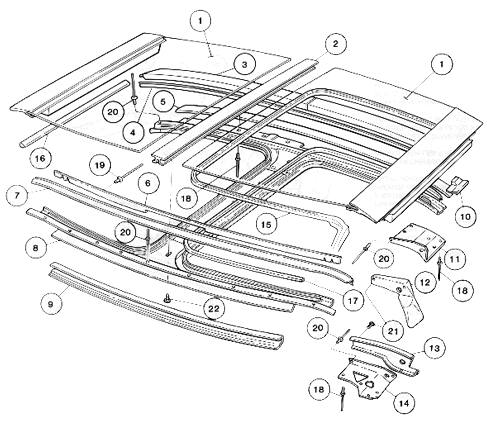

T-Roof Exploded View
| 1 | Glass Panels | 12 | "B" Pillar Cap Trim | |
| 2 | Center Frame | 13 | "A" Pillar Cap Trim | |
| 3 | Rear Roof Outer Moldings RH/LH | 14 | "A" Pillar Bracket | |
| 4 | Outer Roof Seal -- Rear | 15 | Roof Weatherstrip Seal | |
| 5 | Roof Seal Strip | 16 | Shingle Seal | |
| 6 | Front Roof Outer Seal | 17 | Headliner Lock Molding | |
| 7 | Front Roof Outer Molding | 18 | 1/4" Steel Rivet | |
| 8 | Roof Frame Asy Insert | 19 | 1/8" Black Rivet | |
| 9 | Windshield Header Reinf | 20 | 1/8" Bright Rivet | |
| 10 | "B" Pillar Rail Filler | 21 | Sheet Metal Screw | |
| 11 | "B" Pillar Bracket | 22 | Self Tapping Screw |
