Glass Panel Siderail Weatherseal Removal & Installation
T-ROOF GLASS PANEL SIDERAIL WEATHERSEAL REMOVAL:|
Remove glass panel assembly and place on a protective
Remove latch assembly cover by removing two screws
at each end. Push in on lock with handle in the
open position and lift cover over lock and latch pins.
Retain screws & cover for reinstallation.

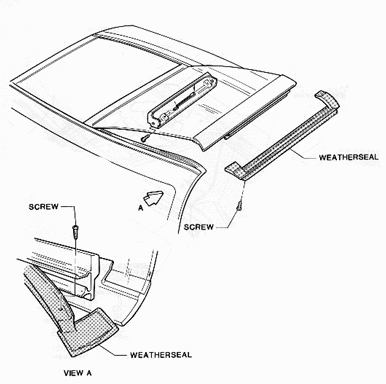

Remove the two scrws at each end of the side rail
weatherseals and retain for reinstallation.
Remove the weatherseal using a small putty knife or smiliar
Clean remaining excess sealant and weatherseal from
the weatherseal retainer and the tab arms.
Apply weathership adhesive along the entire length of the
Center and tuck the weatherseal in place using a body filler
squeegee or similar tool. Note: Make sure siderail weatherseal
corresponds with the glass panel by checking RH or LH markings
on weatherseal tabs.
Check weatherseal location by placing glass panel back into
Slide siderail weatherseal snug against the "A" & "B" pillar roof
Install the two screws into each end of the weatherseal retainer.
Note: This will retain the weatherseal in the required
position until the adhesive dries.
Remove glass panels and place on a protective surface.
Glue seal end tabs to rail using weatherstrip adhesive.
Note: Make sure tabs match the angle of the roof
weatherseal. Hold in place until dry.
Apply a bead of silicone around the tabs paying close
attention to the retainer and shingle seal area.
